Microwaves are essential kitchen appliances that make heating and cooking quick and easy. However, when your microwave oven is not heating properly, it can be a major inconvenience. Before replacing the appliance, there are several potential fixes you can try.
This guide will help you troubleshoot common heating issues in microwaves, potentially saving you time and money. We'll cover various problems and their solutions, empowering you to diagnose and possibly repair your appliance.
When your microwaves not heating food, the problem usually fits into one of two categories: either a functional or mechanical issue. Some common functional issues that you might be experiencing are discussed below.
1. Functional Issues:
These are problems to do with the settings of the microwave, for instance:
Control Lock Mode: A feature most microwaves come with for safety purposes that, when it is on, does not allow the operation of the microwave.
Low Power Level: When the power level setting is too low, the food does not heat up as it should.
Insufficient Cooking Time: If the cooking time is insufficient, this leads to food not being heated well enough.
2. Mechanical Problems:
These are problems that occur with the mechanical parts inside the device. These include:
Bad Magnetron: This part generates the actual microwaves to cook your food.
Defective Door Switch: The microwave will not turn on if this component fails, simply because it's designed for safety.
Fuse or Diode: Both of these are electric components required to keep it going.
Problems in settings often cure functional issues, but in cases of mechanical defects, it is underlined that the services of professionals are of high necessity to either replace some faulty parts or repair them.
Reasons Why Microwave Stops Heating Food
Spending time fixing your own microwave saves you a great deal of money, and is usually possible with tools from the garage. However, fixing your microwave has to be done with caution since they are strong appliances and shock risk.
During the process of fixing your microwave, your problem may simply be an operational fix or a complicated repair that calls for part replacements or a new unit. Read on for more on seven possible reasons why your microwave oven does not heat up.
A magnetron is one of the most significant components in your microwave oven and generates electromagnetic waves that help cook your food. If a microwave is operating, yet it is not heating, then the fault usually lies with a bad magnetron.
How Does a Magnetron Work?
At first, the microwave turns the electric current into microwave-energy rays. Thus, microwaves cooperate with the water molecules in your food, making them vibrate and create warmth. This is the reason cooking with microwaves is fast and at the same time efficient.
Common Causes of Magnetron Failure:
Running the microwave on an empty run
Defective internal magnets
Loose electrical connections
Normal wear and tear over time

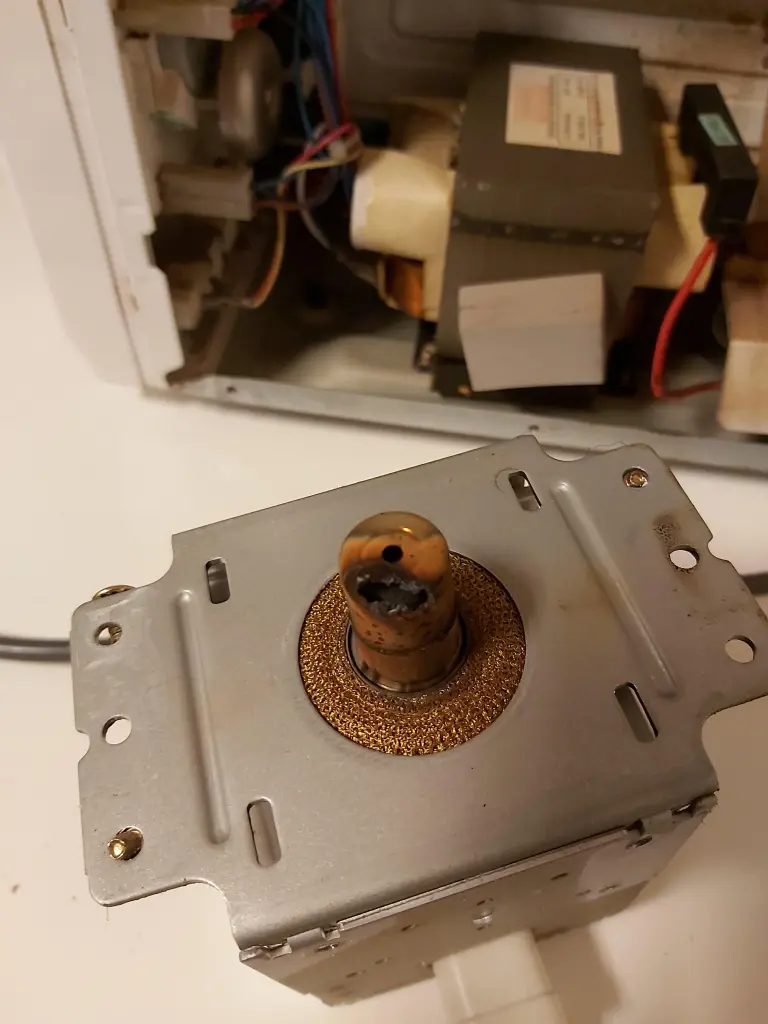

How to Know a Magnetron is Broken:
Look for the following conditions:
The microwave turns on but doesn't heat the food
Strange noises, like loud humming, vibrating, or clicking
Visible damage on the magnetron itself or discoloration
Repair or Replace?
A faulty magnetron cannot be repaired and thus needs replacement. It is an expensive repair in most cases, hence purchasing a new microwave would be economical. Once again, replacing it yourself by ordering spare parts will save lots of money if you have good technical skills.
If doing the replacement yourself, follow these steps below with caution:
Safety first: Unplug the microwave and discharge the capacitor
Take off the outer casing of the microwave and get inside the magnetron
Disconnect and take out the old magnetron
Attach the new one, which is for the exact model of your microwave
Reattach all wires together and reconnect to your microwave oven.
The microwave door switch is a safety feature that prevents the appliance from generating microwaves when the door is open. This small but crucial component is typically located inside the microwave door, measuring about an inch long with metal prongs attached.
Function of the Door Switch:
The door switch acts as a circuit breaker. When the microwave door is closed, it completes the circuit, allowing the appliance to function. When the door is open, it breaks the circuit, stopping microwave generation for user safety.
Impact of a Broken Door Switch:
A faulty door switch can cause two main issues:
The microwave may seem to be working but won't generate heat
In some models, the microwave may not run at all
Identifying a Faulty Door Switch:
Look for these signs:
The turntable doesn't rotate and the food doesn't heat up
The interior light doesn't illuminate when you open the door
Replacing the Door Switch:
Fortunately, door switches are relatively inexpensive and common to many appliances. Here's a general guide to replacing a faulty door switch:
Safety First: Always unplug the microwave before starting any repair
Access the Control Panel: Remove the microwave's outer casing
Disconnect Wiring: Take photos for reference before disconnecting any wires
Locate the Switch Assembly: It's usually on the side of the control panel
Remove the Old Switch: Unscrew or unclip it from the assembly
Install the New Switch: Ensure it's the correct model for your microwave
Reassemble: Reconnect all wires and replace the outer casing
Testing the New Switch:
After installation, test the microwave to ensure:
The turntable rotates when the microwave is on
The interior light works when the door is opened
The microwave stops operating when the door is opened

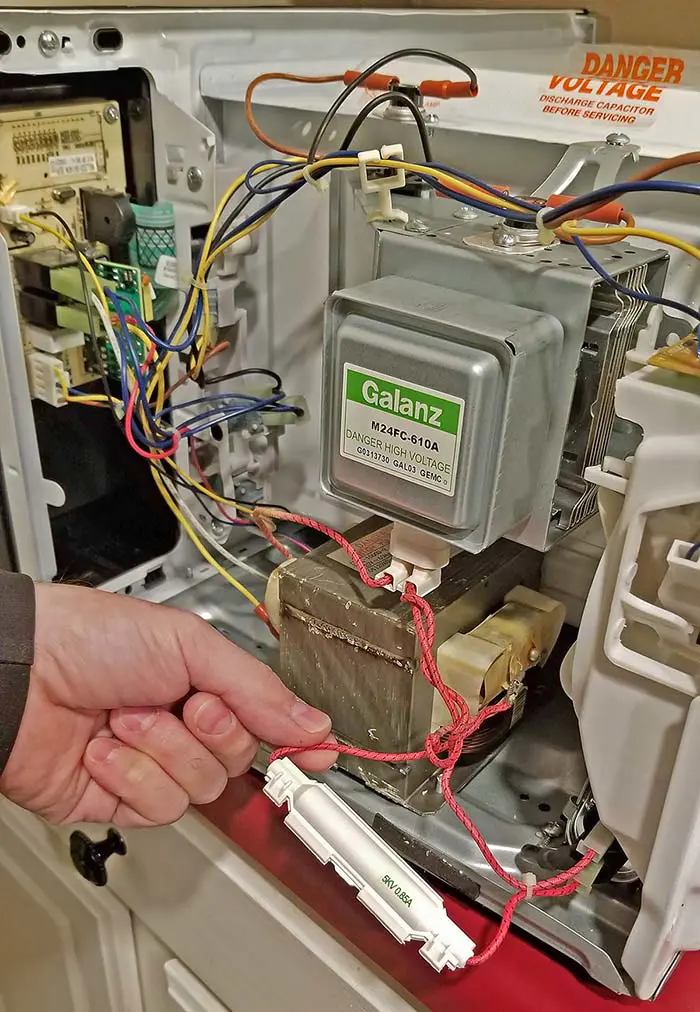

The most crucial element in your microwave oven is the high-voltage diode. Along with the magnetron, it generates the microwaves responsible for heating your food. This small yet potent device converts AC to DC to supply the power that the magnetron needs for it to function properly.
How High Voltage Diode Works:
The diode works like the electric one-way valve, a one-way electric valve. It makes sure that electric current flows in one direction only. Thus, from AC to DC, such conversion is crucial for the magnetron to provide the microwave energy for cooking your food.
In case a high voltage diode fails, it cuts the power supply towards the magnetron. Thus, your microwave might work but fail to heat your food as it should.
How to Identify a Defective High Voltage Diode:
Keep an eye on the following indicators:
You can smell an electrical burning smell coming out of the microwave.
The microwave is running but not heating food.
You hear strange noises, such as sparking, buzzing, or humming.
How to Replace a High Voltage Diode:
If confident enough to work around electrical appliances, here are basic steps to help you replace a faulty high-voltage diode in a microwave oven.
Safety First: Unplug the microwave and discharge the capacitor
Access the Components: Remove the microwave's outer casing.
Find the Diode: It is normally bolted with the capacitor and support bracket
Pull out the Old Diode: Unscrew it from the frame and capacitor
Fit in the New Diode: Attach it to the capacitor terminal and support bracket
Put Everything Back: Reinstall all parts and the outer casing.
Newly Installed Test
After installation of the diode, test the microwave by heating a little water. The thing to check is:
When the microwave is not working, we sometimes forget to check one of the most obvious things: is the thing getting power? Always check the power connection, before you think it's some funky internal wiring problem.
Checking the Power Supply:
1. Make Sure the Appliance is Plugged Correctly:
The microwave should be plugged correctly into a properly grounded power outlet. Sometimes, the plug becomes loose and even falls out accidentally.

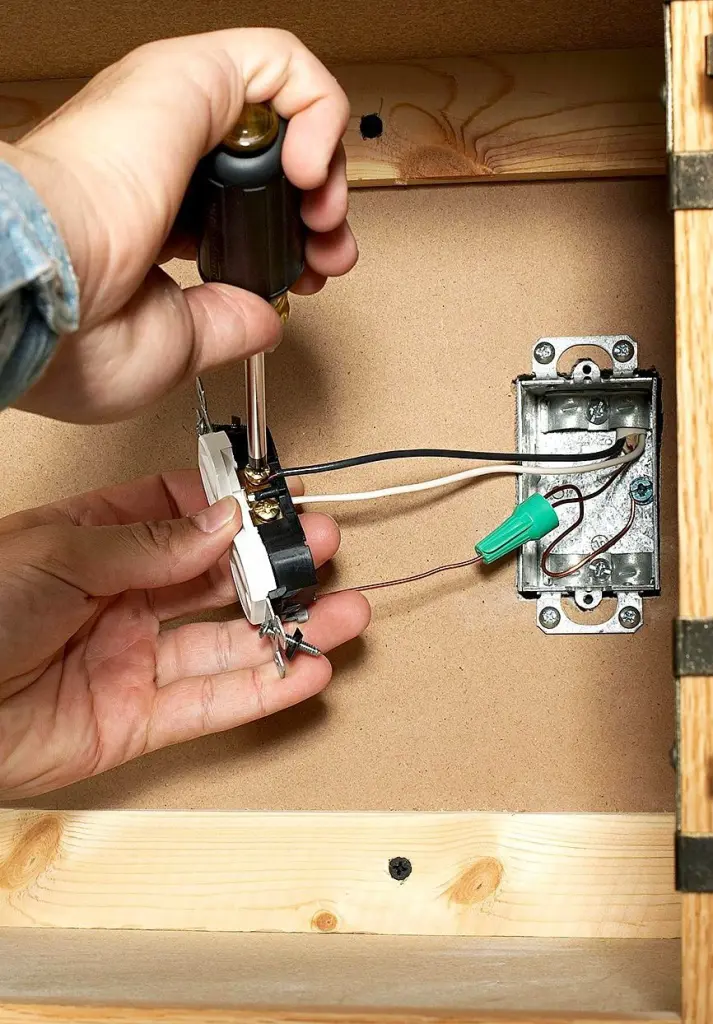

2. Check the Power Outlet:
If the microwave doesn't function using its power plug, then test the outlet. Simply plug in a small household device such as a lamp or cell phone charger. If this operates, then the outlet is ok. Otherwise the problem is with the power supply feeding the outlet.
3. Check the Circuit Breaker:
If the outlet doesn't work, check around the house at the circuit breaker panel. If any breakers have tripped, reset them if necessary. This is usually indicated by a switch that doesn't align with the others or is in the "off" position.
4. Check the Power Cord
First, examine the power cord of the microwave for obvious signs of damage, including fraying and cuts. If the cord has sustained damage, no power can be delivered to the appliance, and this is an unsafe condition.
5. Internal Fuse:
A limited number of microwaves have an internal fuse that can blow. This is somewhat less common and usually requires professional service but is included here for completeness.

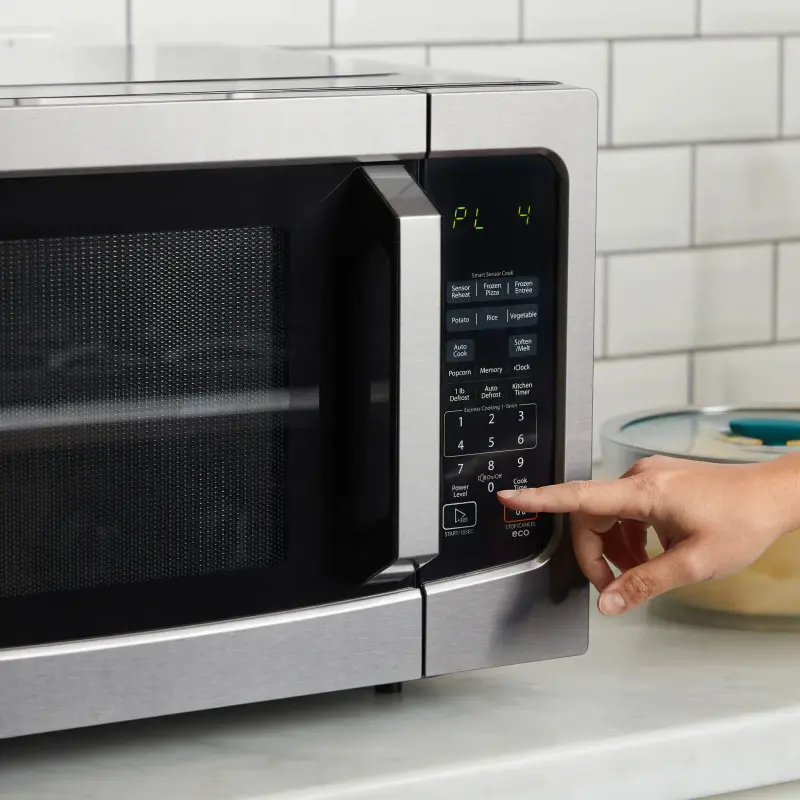

When your microwave seems to be on but fails to heat food, one commonly overlooked issue is the power level setting. Learning to use and apply your microwave's various power settings appropriately can significantly improve your cooking results.
How Microwave Power Levels Work
1. Range of Settings:
Most microwaves have 5-10 power levels.
These range in power from 10%, or lowest, to 100%, or highest.
2. Purpose of Different Power Levels:
Less extreme settings will be appropriate for things like defrosting, softening butter, or cooking delicate foods.
The higher the setting is required for dense foods or liquids to heat up faster.
3. How Power Levels Work:
Lower power levels do not make the microwaves less intense.
Instead, they turn the magnetron on and off to accomplish the right average power.
Common Power Level Uses:
100% (High): Quick heating, boiling liquids
70-80% (Medium-High): Regular cooking
50% (Medium): Slower cooking for denser foods
30% (Medium-Low): Defrosting, softening
10% (Low): Keeping food warm, gentle defrosting
How to Check and Change Power Levels:
Look on your microwave control panel for a button displaying the power level.
Use it to cycle through the list of desired power levels or to input a particular percentage.
Of course, some microwaves allow adjusting the power level only after first setting time.

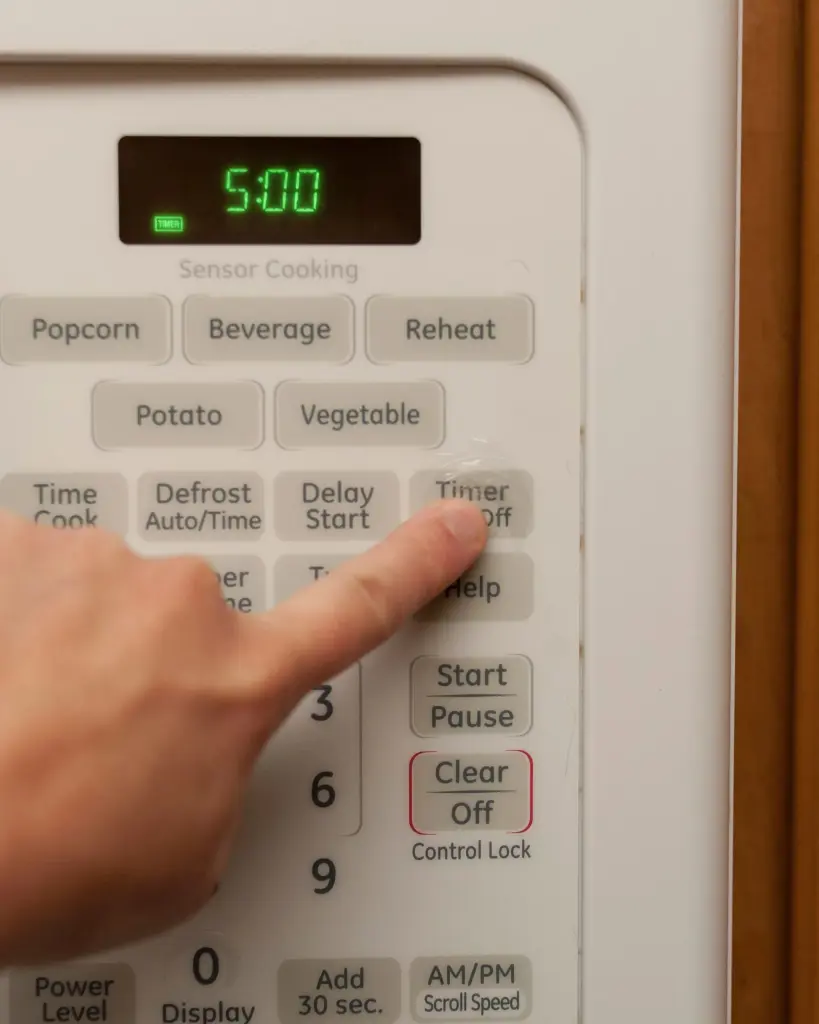

Some advanced microwave models offer a Delay Start feature, allowing users to program cooking settings in advance and start the cooking process at a later time. While this feature can be useful, it can also lead to confusion if you're not aware it's activated.
Understanding the Delay Start Feature:
1. Purpose:
Allows you to set up cooking instructions in advance
Starts cooking at a predetermined time
Useful for meal planning or when you want food ready at a specific time
2. How It Works:
You input cooking instructions (time, power level, etc.)
Set a delay time
The microwave waits until the specified time before starting the cooking process
3. Identifying Delay Start:
Look for a "Delay Start" or "Timer" button on your microwave's control panel
The display might show a countdown or a clock icon when this feature is active
Troubleshooting a Non-Starting Microwave:
1. Check for Delay Start Activation:
Look at the display for any indications of a timer or delayed start
Check if there's a flashing clock or timer symbol
2. Canceling Delay Start:
Press the "Cancel" or "Clear" button
Some models might require holding this button for a few seconds
Refer to your user manual for specific instructions on canceling this feature
3. Restarting the Cooking Process:
After canceling the Delay Start, input your desired cooking settings again
Start the microwave as you normally would
When To Call A Professional?
While some microwave issues can be resolved through simple troubleshooting, there are situations where professional help is necessary. Here's when you should consider calling a microwave repair technician:
1. Electrical Issues:
Sparking inside the microwave (not caused by metal objects)
Burning smell or smoke
Power fluctuations or unexpected shutoffs
2. Physical Damage:
Cracked or damaged door
Broken turntable or internal components
Dents or cracks in the microwave cavity
3. Complex Internal Problems:
Issues with the magnetron or high-voltage components
Faulty control board or display
Problems that persist after basic troubleshooting
4. Safety Concerns:
Any issue that makes you question the microwave's safety
Radiation leakage concerns (though rare in modern microwaves)
5. Warranty Considerations:
If your microwave is still under warranty, authorized repairs are crucial
6. Lack of Expertise:
If you're uncomfortable working with electrical appliances
When repairs require specialized tools or knowledge
7. Recurring Issues:
Problems that keep coming back despite your attempts to fix them
8. Age of the Microwave:
For older models, professional assessment can determine if repair is worth the cost
